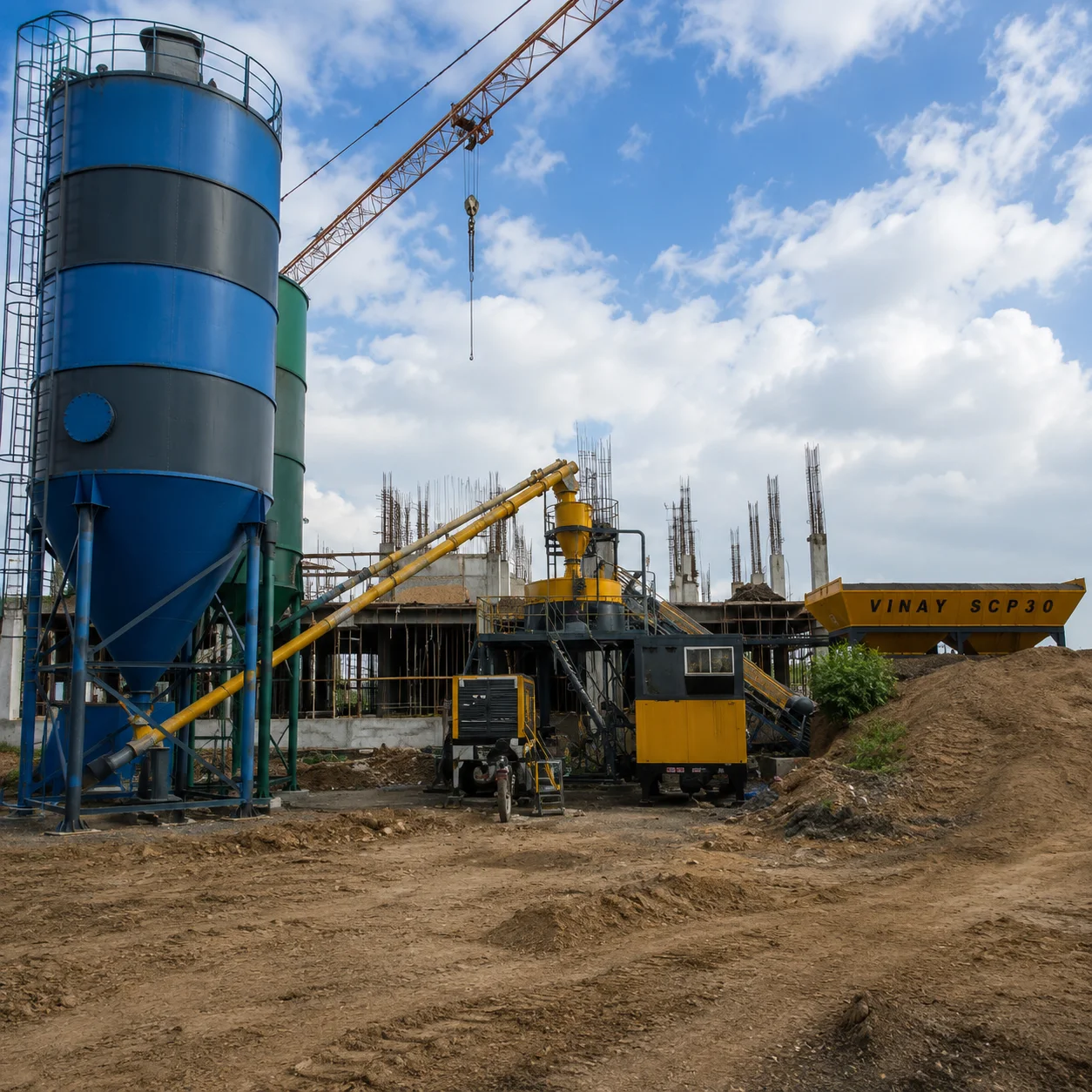

Vinay Industries offers a robust and efficient Mobile Concrete Batch Plant designed for easy transportation, quick installation, and reliable concrete production. Built with advanced control systems, accurate weighing technology, and durable construction, this plant ensures consistent concrete quality, reduced operational time, and improved productivity for construction and infrastructure projects. Because apparently concrete also needs to travel now
| Model | CMP2 | CMP3 | CMP4 | CMP5 | CMP6 |
|---|---|---|---|---|---|
| Output capacity | 20m3/hr | 25m3/hr | 30m3/hr | 45m3/hr | 60m3/hr |
| Mixer type | Turbo pan type mixer / twin shaft mixer | ||||
| Main mixer drive | 20HP | 25HP | 30HP | 40HP | 50HP |
| Material storage system | 2 x 2 cross bin feeder | ||||
| Material storage capacity | 14 M3 | 14 M3 | 20 M3 | 20 M3 | 30 M3 |
| Material weighing capacity | Digital load cell based separated weighing of Aggregate, cement, water, additive | ||||
| Material Feeding system | Through inclined belt conveyor | ||||
| Control panel | Fully automatic PLC based control panel | ||||
| Concrete discharge height | 2.2 Mtr from the ground level | ||||
| Total connected power | 48 HP | 53 HP | 63 HP | 77 HP | 98 HP |
| Suggested DG set | 62 KVA | 62 KVA | 82 KVA | 100 KVA | 125 KVA |
| Specification | Details |
|---|---|
| Product Type | Plant |
| General Use | Concrete Batch |
| Material | Stainless Steel |
| Computerized | Yes |
| Automatic | Yes |
| Supply Ability | 10 Per Day |
