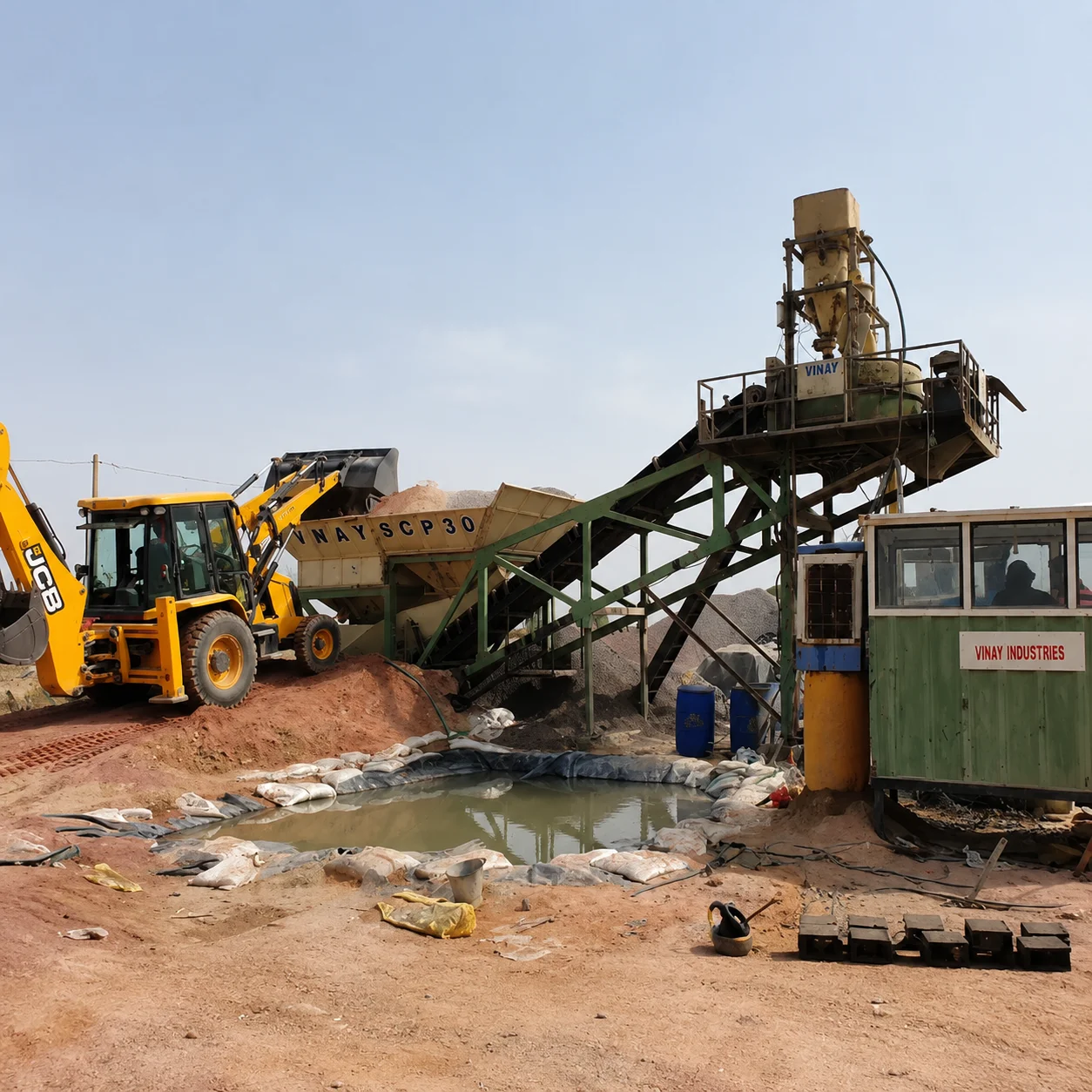

Vinay Industries offers a reliable Stationary Concrete Batching Plant designed for accurate mixing, high production capacity, and smooth site operation. Built with strong components, PLC-based control, efficient weighing systems, and durable mixer options, this plant is ideal for construction projects requiring consistent concrete quality, better productivity, and long-term performance.
| Model | VIP 20 | VIP 30 | VIP 45 | VIP 60 |
|---|---|---|---|---|
| Output capacity | 20m³/hr | 30m³/hr | 45m³/hr | 60m³/hr |
| Mixer unit | Turbo pan type mixer / twin shaft mixer | |||
| Main mixer reduction gear box | Imported planetary reduction box | |||
| Material storage capacity | 20 M³ | 30 M³ | 45 M³ | 60 M³ |
| Material weighing capacity | Digital load cell based separated weighing of Aggregate, cement, water, additive | |||
| Batch feeding system | Through inclined belt conveyor / Inclined skip bucket | |||
| Control panel | Fully automatic PLC based control panel | |||
| Concrete discharge height | 4.0 Mtr from the ground level | |||
| Total connected power | 52 HP | 74 HP | 87 HP | 120 HP |
| Suggested DG set | 62 KVA | 82 KVA | 125 KVA | 160 KVA |
